In a recent test setup, UltraFlex Power Technologies demonstrated the speed and quality of induction brazing for manufacturing purposes.

In a recent test setup, UltraFlex Power Technologies demonstrated the speed and quality of induction brazing for manufacturing purposes.

The test setup had been requested by a potential customer – a leading manufacturer who needed to replace existing torch brazing methods to increase production volumes, consistency and repeatability. UltraFlex is a manufacturer of advanced digitally controlled induction heaters and frequently performs test applications for customers evaluating a switch to induction heating solutions.

The customer aimed at brazing 3000 pieces per month, with no rejects, which posed high requirements regarding the speed and quality of the brazing process. Considering the elements to be brazed – a 5/32” (3.96 mm) copper capillary type tube and a 9/16” (14.28 mm) electroplated rod – UltraFlex engineers considered UltraFlex induction heater from the UltraHeat SM series to be the perfect induction equipment for this case. UltraHeat SM is a compact 5kW induction heater which operates with either a water-cooled or air-cooled remote heat station. It can be very easily tuned to a wide range of loads and coils and its compact design can fit in any space.

The brazing process started by positioning the workpieces into a coil and clamping them together. Flux was applied at the brazing joint spot and brazing alloy was manually fed when the target brazing temperature of 1600 F (871 °C) had been reached.

At a power output of 4.5 kW, it took mere 40 seconds for the pre-programmed brazing to get completed. The evaluation of the brazing done proved the high-quality and reliability of the joints. The automation of the brazing process guaranteed that the customer would get consistent results if the brazing process would be implemented on the production line. Finally, thanks to this fast heating time, the target of 3000 brazed pieces per month could easily get reached.

This UltraFlex demonstration proved that by replacing torch brazing with induction brazing, all customer requirements for increased productivity and excellent quality could easily get met. In addition to being time-efficient, as well as cost-efficient, the induction brazing would be a completely safe process – both for the operator and for the environment, thanks to the lack of open flame, fumes and pollution.

Interested in finding out more?

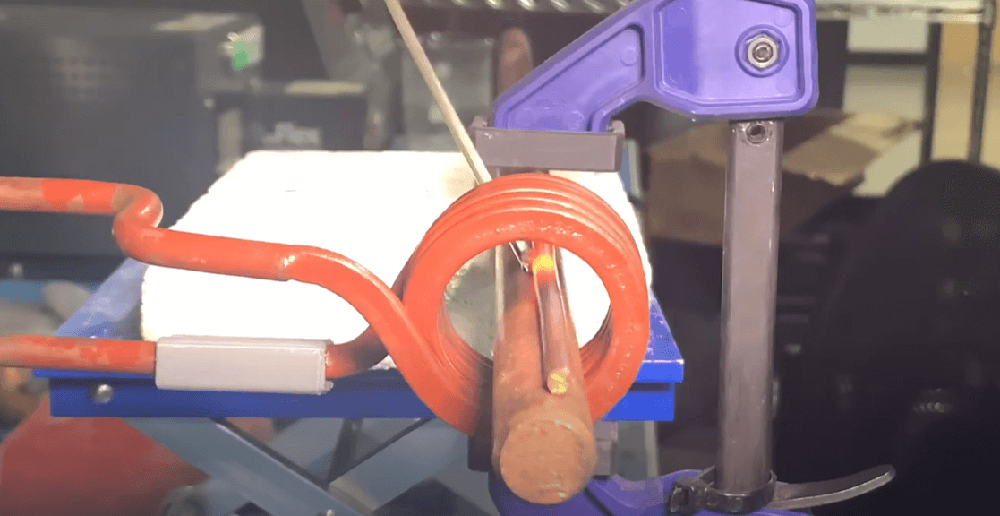

Induction brazing of a steel rod to copper.
