Zimmermann, one of the world’s leading manufacturers of high-tech portal milling machines, just released the new FZP machine line.

Model, tool and die makers must deliver perfect quality at competitive prices under increasing deadline pressure in order to prevail against strong global competition. Zimmermann is responding to this market condition with the newly developed FZP machine line. These 5-axis portal milling machines are customizable, space-saving  and extremely thermostable. These features are ensured by the new thermosymmetrical design with a center-guided Z-slide. Daniel Demlang, technical director at Zimmermann, explains the advantages for the user.

“An evolution is a progressive process.  A revolution, by contrast, is a fundamental and lasting structural change of a system – this is exactly what we have done with the development of our new FZP machine line,” reports Zimmermann Technical Director Daniel Demlang. The demands that model, tool and die makers need to meet today have grown steadily. Their customers demand workpieces with near-perfect surfaces and consistently high dimensional accuracy. The key to achieving this goal is manufacturing equipment that minimizes rework to ensure fast delivery times. “Our customers are burdened by increasing cost pressure and the demand for ever higher quality, while simultaneously increasing delivery deadline pressure for components. Reducing throughput times for workpieces was one of our main goals with the newly developed FZP series in terms of design,” explains Demlang. “Stable process control and high machining quality are decisive factors for the cost-effectiveness of our systems.” However, the customizability of our milling machines was not allowed to decline. Machines of the FZP Series are therefore even more flexible, in terms of set-up and design, with a comprehensive range of additional options.

Customizable – not only in length and width

“With our new FZP line, we primarily want to empower customers to compete successfully in the market for the long term,” says Demlang. The developers have placed particular emphasis on the customizability of the machines. Their structure can be varied in length and width with different vertical slides and gantries, thus adapting to a wide range of workpiece sizes. The “lightest” machine in the FZP line is the new FZP32 with a working range of up to X = 10, Y = 4 and Z = 2.5 meters (393” x 157” x 98”). The user can machine block materials, plastics, as well as CFRP, GFRP and aluminum, among other materials. Due to the large working area, it is also possible to mill components completely without reclamping. “The modular design of the machine offers the possibility to consider different options.  Automation solutions, such as a pallet changing system, a positionable rotary table, dust extraction bells and an individualized tool clamping system are all possible,” explains the technical director.

Thermosymmetrically constructed

It was important to the developers to build the FZP line for maximum dimensional accuracy during workpiece machining. This is because changing temperatures in the user’s facility, as well as long machine running times, inevitably influence the machining quality. For this reason, the Zimmermann developers designed these new portal milling machines thermosymmetrically – a concept that was used successfully for the first time at Zimmermann in 2017 in the compact FZU portal milling machine line and was enthusiastically received by customers.

“The idea of the thermosymmetrical design is based on the fact that inevitable thermal influences can be absorbed to a considerable extent by the design of the machine structure,” explains Demlang. In the portal milling machines of the FZP line, Zimmermann has arranged the milling spindle, guides and other accuracy-determining components in such a way that their heating is either absorbed or can expand in non-critical directions. The gantry’s center-guided Z-slide in double-bridge design, for example, has an octagonal cross-section that makes it particularly stable. “With this design, we achieve very high thermosymmetric stability,” says Demlang. Comparable systems usually use complex cooling or software-based compensation for this purpose.

“Our concept is future-proof, especially when the demands on quality and surface continue to rise,” promises Demlang.  Companies that do not have an air-conditioned machining facility and are therefore particularly exposed to temperature fluctuations in their production will also benefit from this concept. And this is where the new design further scores points, according to Demlang. The design of the structure alone reduces the effects of the influencing variables to a minimum.

VH10: milling head with extraction

The Zimmermann VH10 milling head is used on this new machine line. The fork head is designed in monoblock versions made of cast iron. It is compactly built, has only minimal interference contours, achieves high clamping forces and thus enables stable component machining. Zimmermann optionally equips the VH10 milling head with process cooling via cooling lubricants and minimum quantity lubrication. To reduce throughput times, a powerful spindle with 34 kilowatts (45 HP) at a maximum speed of 24,000 rpm is used as standard in the milling head. “We have now also equipped the VH10 with a dust extraction bell around the milling tool,” Demlang notes. This makes it suitable for abrasive and harmful materials such as GRP or CFRP, which are used in aircraft construction. The dust extraction system captures the dust directly at the point of origin, which greatly reduces contamination of the interior.

Great flexibility by design

Facility conditions are often a challenge for the installation of large milling machines. Free installation space is usually scarce and machine concepts must offer a high degree of flexibility in installation. The Zimmermann developers have applied symmetry not only to the basic structure of the gantry, but also to the complete machine concept. This allows the customer to individually determine specific connections or peripheral attachments. “We can then simply position the peripherals as required by the individual situation without making any major design changes to the new FZP32,” says Demlang. Overall, the ratio of floor space to workspace has been optimized with this new development.

Zimmermann equips the new machine line with larger tool magazines or even pallet changers on request. This allows users to reduce non-productive time and make their production more automated. Another feature: “Milling-turning applications are increasing, especially in aircraft construction, for example in turbine production,” says Demlang. “For this purpose, we also equip our milling machines with carousel rotary tables on request.”  Regardless of the task the customer needs to perform, Zimmermann’s experts can supply the machines in a customer-specific, optimized way with their modular plant construction kit (MAB).

What’s next?

“We already have the first orders for the FZP32, our ‘light’ entry-level model in the new series,” says Demlang. “Based on the new double-bridge gantry, we will soon launch the new FZP37, a machine in the medium segment, and the FZP42, one in the heavy segment for the mold and die industry.” The heavy-duty FZP42 machine will be in the 1,000 newton-meter (737 ft lb) torque range. “We have taken a forward-looking path with this new machine line,” concludes Daniel Demlang.

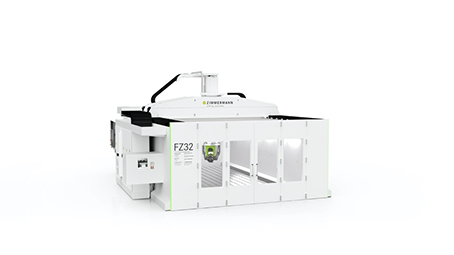

The completely newly developed FZP32 machine: The 5-axis portal milling machine is compact, very flexible - and highly accurate. Picture credits: F. Zimmermann GmbH
The completely newly developed FZP32 machine: The 5-axis portal milling machine is compact, very flexible – and highly accurate. Picture credit: F. Zimmermann GmbH
Technical Director at Zimmermann, Daniel Demlang: "With our new FZP line, we want, above all, to support customers in being able to compete successfully on the market in the long term." Picture credit: F. Zimmermann GmbH
Technical Director at Zimmermann, Daniel Demlang: “With our new FZP line, we want, above all, to support customers in being able to compete successfully on the market in the long term.” Picture credit: F. Zimmermann GmbH

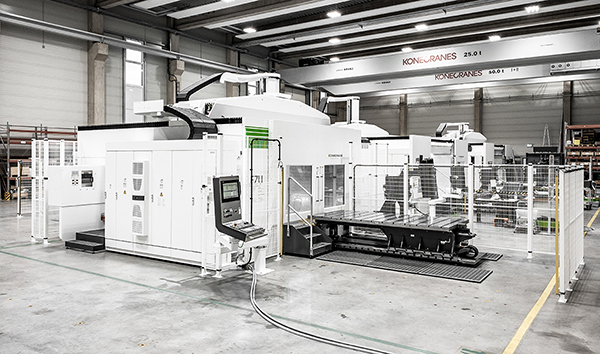

The machine can be equipped with automation – shown here are changeover slides on both sides. Picture credit: F. Zimmermann GmbH
The machine can be equipped with automation – shown here are changeover slides on both sides. Picture credit: F. Zimmermann GmbH

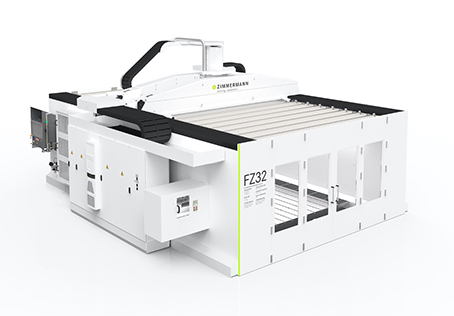

The developers have applied symmetry not only to the basic structure, but also to the complete machine concept. Picture credit: F. Zimmermann GmbH
The developers have applied symmetry not only to the basic structure, but also to the complete machine concept. Picture credit: F. Zimmermann GmbH
