Three 5-ton capacity overhead cranes have been installed at a JR Automation / Setpoint facility.

Three 5-ton capacity overhead cranes have been installed at a JR Automation / Setpoint facility where the design, engineering, and integration of robotic systems and custom amusement attractions occurs.

Overhead crane and hoist manufacturer R&M Materials Handling Inc. and its distributor Hoj Innovations, of Salt Lake City, UT combined to deliver a solution for a recent expansion project.

Application

At the Ogden, UT facility, JR Automation / Setpoint uses a variety of material handling equipment as part of their everyday production. JR Automation / Setpoint designs, builds, and integrates advanced automation solutions for automotive, aerospace, energy, and other industrial customers throughout the world.

Think of the scale of construction required to manufacture and install these systems, and the levels of safety necessary to serve the industry. JR Automation / Setpoint is at the center of this exciting sector and relies on state-of-the-art cranes and hoists to meet the ever-increasing demands of customers like Universal Studios, Disney, Target, and Amazon.

Challenge

Jerry LeBaron, Sr. Engineering Projects Manager at Hoj Innovations, explained that JR Automation / Setpoint arrived at a need for additional cranes due to increasing workload projections and the lifting requirements involved.

Steve Schultz, Facilities & Safety Manager at JR Automation / Setpoint, added that the cranes were required to support increasing production and to provide reliable lifting and positioning of heavy materials that was safer and more efficient than alternative methods and technologies. Two cranes were to be installed on a new, 260 ft.-long runway, which was also part of the contract, and one on an existing runway at the site.

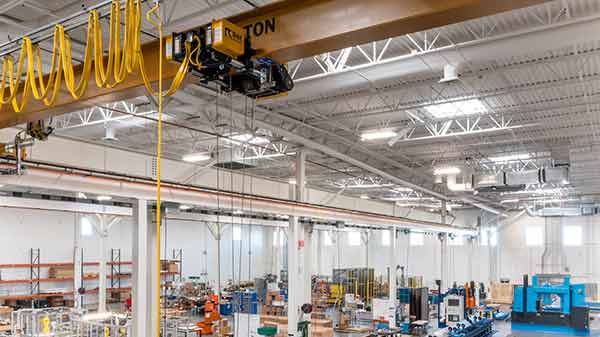

The Cranes Span 47 Ft 9 In And Offer 21 Ft Of Lift DJI 0264, Industry Today
The cranes span 47 ft. 9 in. and offer 21 ft. of lift.

Solution

Hoj Innovations has worked with JR Automation / Setpoint in the past. Hoj has been a long-time provider of service and support on the facility’s material handling equipment and as a supplier and integrator of conveyor systems utilized on previous projects.

For this specific project, 5-ton capacity top-running, single-girder crane kits were provided by R&M Materials Handling Inc. and installed by its distributor, Hoj Innovations. The cranes, which span 47 ft. 9 in. and offer 21 ft. of lift, feature R&M’s SX low-headroom wire rope hoists, which help to maximize the lifting height of each system.

Kimberly Cromwell, Regional Sales Manager at R&M, stated that Hoj Innovations chose to incorporate R&M modular crane kits for the project not only because they were able to reduce the overall cost to the customer due to the efficiency of the assembly and installation of the crane components, but they also knew that JR Automation / Setpoint would appreciate the superior quality of the equipment and the extreme ease of use of the overall crane systems.

Results

In July 2021, three new cranes were installed by Hoj Innovations in the facility—two on the new runway and one on an existing runway. Schultz said that the overhead cranes can travel in narrow aisles or corridors and can move in multiple directions. This enables efficient movement of materials through spaces that are too small for floor-based movers, such as forklifts. Hoj Innovations also provided operator training and after-sales support as part of the three-crane project.
